MEDICA® R200

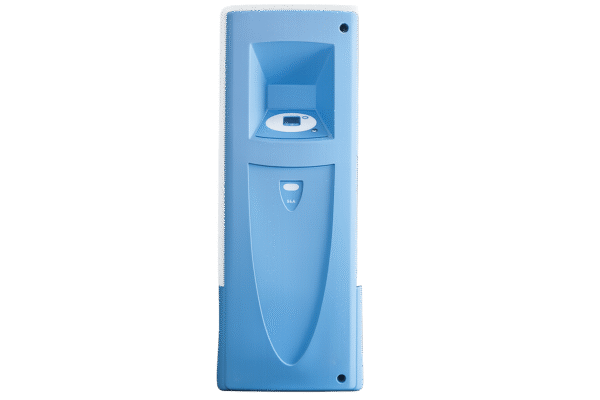

MEDICA-R200
High-Throughput CLRW for Mission-Critical Labs

The MEDICA-R200 is the ultimate solution for high-throughput laboratories that demand uncompromising water quality and absolute reliability. Specifically engineered to supply large volumes of Clinical Laboratory Reagent Water (CLRW), this system delivers up to 21 liters per minute, supporting multiple high-demand analyzers or even entire laboratory floors through a dedicated distribution loop. Its powerful integrated 350-liter reservoir ensures consistent availability during peak usage, routine maintenance, or unexpected interruptions, giving your lab a constant safeguard against downtime.

Designed with advanced purification technologies—reverse osmosis, service deionization, ultraviolet disinfection, ultrafiltration, and continuous recirculation—the MEDICA-R200 guarantees water purity that exceeds stringent CLSI Type 1 standards. Microbial control is assured with bacterial levels maintained below 1 CFU/mL, while organics, particulates, and silica remain within ultra-low limits. Every drop of water is QC-ready the moment it leaves the system, protecting sensitive diagnostic equipment and ensuring accurate, reproducible test results.

Despite its industrial-scale capacity, the system has a surprisingly compact footprint, with a modular wrap-around reservoir design that maximizes lab space and simplifies installation. Intelligent self-monitoring software continuously verifies performance, alerts users to consumable changes, and protects operations with a built-in emergency bypass for uninterrupted supply. With lower total cost of ownership, reduced consumable replacement, and strong global service support, the MEDICA-R200 is not just a water system—it is a mission-critical investment in uptime, compliance, and diagnostic confidence.

Full Technical Specifications

Performance & Capacity

• Maximum production rate: ~200 L/hour
• Delivery flow: Up to 21 L/min instantaneous supply to analyzers
• Reservoir: Integrated 350-liter wrap-around storage for peak demand buffering
• Continuous recirculation ensures fresh water at first draw
• Supports multi-analyzer and multi-floor distribution via ring-main configuration

Water Quality

• Standard: CLRW (Clinical Laboratory Reagent Water), equivalent to CLSI Type 1
• Resistivity: > 10 MΩ·cm at 25 °C
• Total Organic Carbon (TOC): < 30 ppb (typical)
• Bacteria: < 1 CFU/mL
• End-filter: 0.05 µm final filtration
• Silica: < 0.05 mg/L
• Organics and inorganic contaminants reduced to CLRW limits

Purification Technologies

• Reverse osmosis modules
• Service deionization (SDI) cartridges with regenerable resin
• Ultraviolet (UV) disinfection
• Fine micro-/ultrafiltration for particles and bacteria
• Continuous recirculation pump
• Emergency bypass loop for uninterrupted supply during maintenance
• Rapid sanitization protocols for maintaining microbial safety

Engineering & Installation

• Cabinet design: Compact, modular, and space-efficient
• Placement options: Under-bench, wall-mounted, or free-standing
• Distribution: Supports ring-main pipelines up to ~100 meters
• Connections: Quick-fit feed, drain, and distribution fittings for ease of installation

Monitoring & Control

• Self-monitoring software continuously verifies system performance
• Real-time alerts for consumable exhaustion, system health, and water quality deviations
• Built-in alarms for bypass activation, low reservoir, and quality assurance checks
• Integrated quality sensors at distribution point for compliance monitoring

Serviceability & Cost Efficiency

• Regenerable SDI cartridges reduce consumable replacement and costs
• Predictable running expenses with lower total cost of ownership
• Easy access to components for quick service and maintenance
• Supported by global service and validation network; IQ/OQ/PQ documentation available
